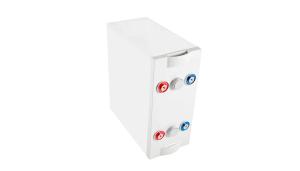

2V 800AH Gel Lead-acid Batteries for UPS, L382mm x W170mm x H340mm
HRESYS SCG Series Valve Regulated Lead Acid Gel Battery is specially designed for UPS Applications including renewable energy system, outdoor telecom and cycle application for harsh environment With international leading technologies and State-of-the-art automated manufacturing, SCG series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
- Long Cycle Life: 15 years long life design @ 25℃
- Multi-purpose Application: The battery can be floating application as well as cyclic application
- Low Self-discharge: Adopted high quality grid alloy and high purity electrolyte, low self-discharge
- High Reliability and Safety: Adopted enhanced ABS container and special design safety valve to ensure battery high durable, safe and reliable
o Renewable energy
o Outdoor telecom
o Mini Solar Power System
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
| Nominal Voltage (V) | 2 |
| Nominal Capacity (25 C) | 800 Ah@C10 (to 1.80Vpc) |

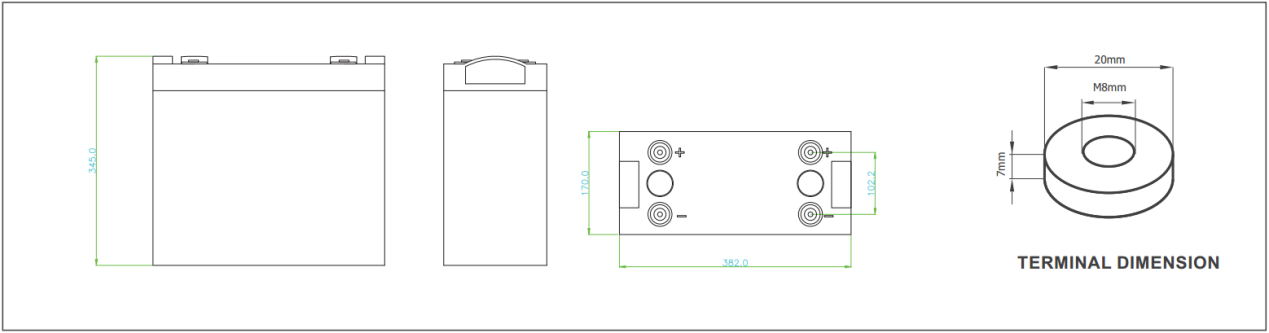

| Dimension (mm) | L382mm x W170mm x H340mm |
| Approx. Weight | 51.7 kg (114 lbs.) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.28mOhm (fully charged@ 20°C) |
| Max. Charge Current | 200 A |
| Self-Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -40~60°C Charge: -20~55 °C Storage: -20~45°C |
| Float Charge Voltage | 2.25V/cell @25℃ |
| Equalize Charge Voltage | 2.35V/cell @25℃ |
| Container Material | ABS (UL94-V0 optional) |
· Cyclic Characteristics
High cycle performance: up to 820 cycle at 80%DOD
