12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose , L195mm x W130mm x H168mm

Name: 12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose L195mm x W130mm x H168mm
Brand: HRESYS
Price: 1 USD

Brand Name : HRESYS

Model Number : VHR 12GT33

Certification : CE

Place of Origin : China

MOQ : 10 Pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1800000 PCS/YEAR

Delivery Time : 30 DAYS

Packaging Details : Box/carton(standard package)

Product Name : 12 V Lead-acid Batteries

Application : General Use

Capacity : 33 Ah

Nominal Voltage (V) : 12

Float Charge Voltage : 13.6V @25℃

Internal Resistance : ≤ 0.009 Ohm (fully charged)

Weight : 10.5 kg (23.1 lbs)

Dimension : L195mm x W130mm x H168mm

Contact Now

12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose , L195mm x W130mm x H168mm

Product Overview

HRESYS General Purpose VRLA AGM battery GT series is Top terminal design. With

advanced manufacturing technique and industry scale, GT series is highly suited for UPS

systems, security and alarm systems, telecommunication, utilities, emergency light systems, and other backup applications.

Features and Benefits

Wide operation temperature range
High energy density and high reliability performance
Standard sizes for general purpose
Flexible design for multiple installation space
Low self-discharge rate
Maintenance-free operation and non-leakage

Applications

Uninterrupted Power Supply(UPS)
Emergency Power Supply
Electric Tools and Toys
Cable Television

Working Scenarios

Batteries are mainly working as backup power with not many cycles
Backup time normally doesn’t exceed 2 hours
Shadow cyclic use and cycles not many

12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose , L195mm x W130mm x H168mm

Product Specification

Nominal Voltage (V)	12
Designed Floating Life (25℃)	5 Years
Nominal Capacity (25℃)	33 Ah@ C20 (to 1.75Vpc)
Dimension (mm)	L195mm x W130mm x H168mm
Approx. Weight	10.5 kg (23.1 lbs)
Terminal Type	Female Copper Insert M5
Internal Resistance	≤ 0.009m Ohm (fully charged @25℃)
Max. Charge Current	9.9 A
Max. Discharge Current(5S)	380 A
Short Circuit Current	1200 A
Self Discharge	Approx. 2.5% per month @ 20℃
Ambient Temperature	Discharge: -20~55℃ Charge: -20~50℃ Storage: -20~45℃
Float Charge Voltage	13.6V @25℃
Equalize Charge Voltage	14.4V @25℃
Container Material	ABS (UL94-V0 optional)

Complied standards

o IEC 60896-21/22

o GB/T 19638

o IEC61427

o JIS C8704

o BS6290 PART4

Management and Product Certificates

o ISO9001:2015

o ISO14001:2015

o OHSAS18001:2007

o CE Certificate

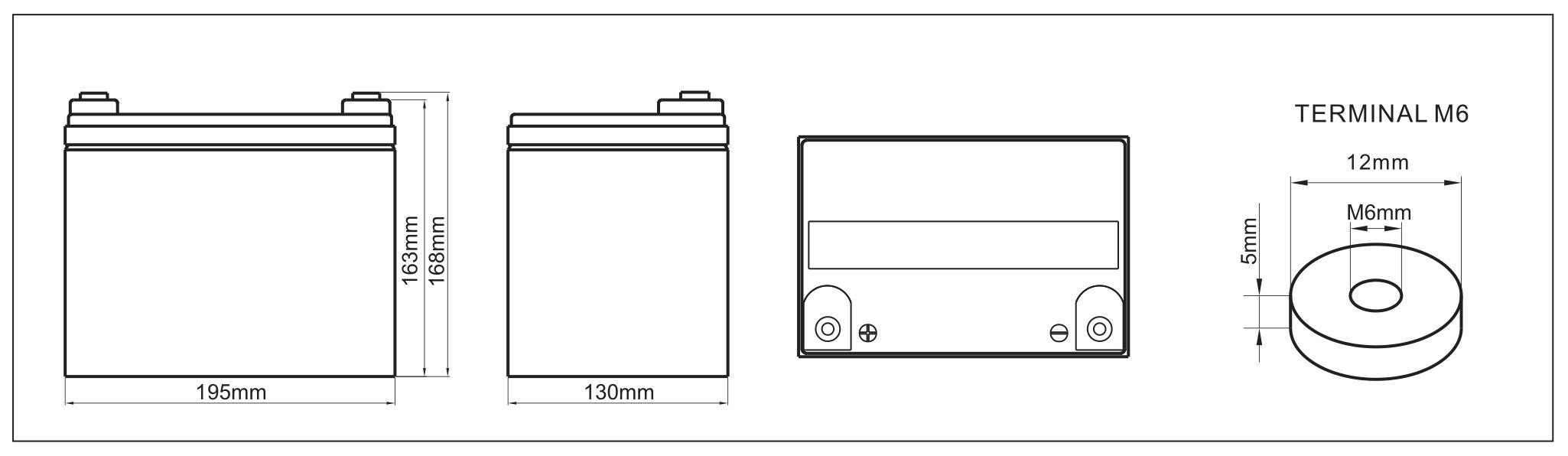

Battery Dimension

12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose , L195mm x W130mm x H168mm

Performance Curves

12 V 33 AH Top Terminal VRLA AGM Battery for General Purpose , L195mm x W130mm x H168mm
